Guidance on usage: SFTP OpenSSH – FTP Server on Oracle 8.6

Configuration and connect to the SFTP OpenSSH – FTP Server on Oracle 8.6

Connecting and managing server

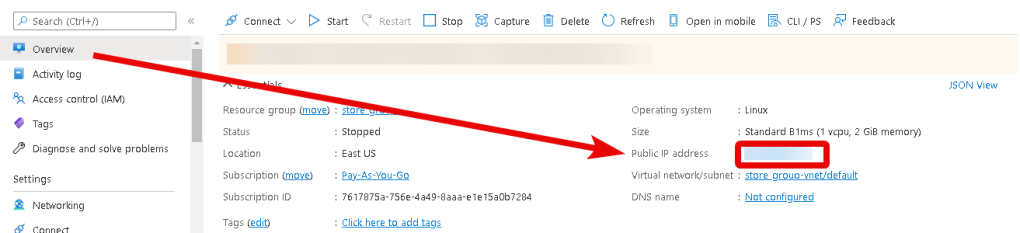

  1. Run the VM through Azure Portal. To customize the Server, first, you need to know the server IP address. You can find it in the personal account of Azure. You need to select the virtual machine from the list. By clicking the item “Overview”, your IP is displayed in the line “Public IP Address”.
  1. To manage with a server, you should connect to a VM.
    1. With OpenSSH

In the Windows 10 operating system (starting with version 1809), an OpenSSH client is available, with which you can connect to Linux servers via SSH. If Windows 10 is suitable and the OpenSSH client is installed, you can start connecting via SSH. To do this, launch a standard Windows command prompt and enter the command “ssh user@*vm_ip*”.

Where “user” is the username that was specified while creating the virtual machine and “*vm_ip*” is the VM IP address.

In the opened console, it is necessary to enter a password that was specified while creating the virtual machine.

  1. With the PuTTy application

To do this, you need the PuTTy application to connect via ssh. You can download it at the following link – Download

Run Putty, enter the VM address in the “Host” field, and click “Open” to connect.

In the opened console, you will need to enter a username and password specified while the VM was being created (you’ll not see the password in the console while entering it).

  1. Examples of the basic FTP user management commands:

User creation – sudo addsftpuser (When creating a user, you must add a password for this user)

Change the password for an existing user – sudo passwd username

Deleting a user – sudo delsftpuser

Account lockout – sudo usermod -L username

Account unlock – sudo usermod -U username

Connecting to FTP using “FileZilla Client”

To connect to FTP, it is recommended to use the “FileZilla Client” application (you can download it from the link: Download FileZilla Client for Windows (64bit x86)).

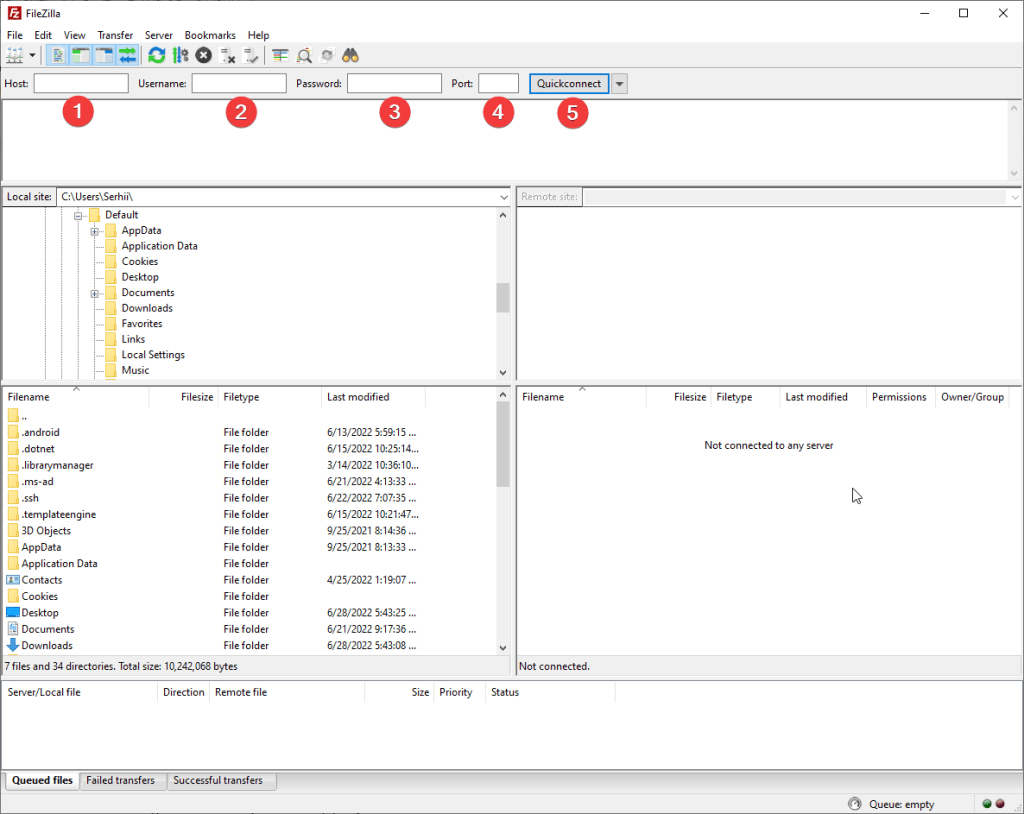

When connecting to the FTP server, you need to follow these steps:

  1.  In the Host field enter: sftp://ip_vm, where ip_vm is the VM IP address
  2. In the Username field enter the login that was specified when creating the VM or the username created in step 3 of the previous section
  3. In the Password field enter the password that was specified when creating the VM, or the user password created in Step 3 of the previous section
  4.  In the Port field enter port 22
  5.  When the data is entered, press Quickconnect

After entering all the data and clicking on <Quickconnect> you will successfully connect to the port. Now you can work with this server.
